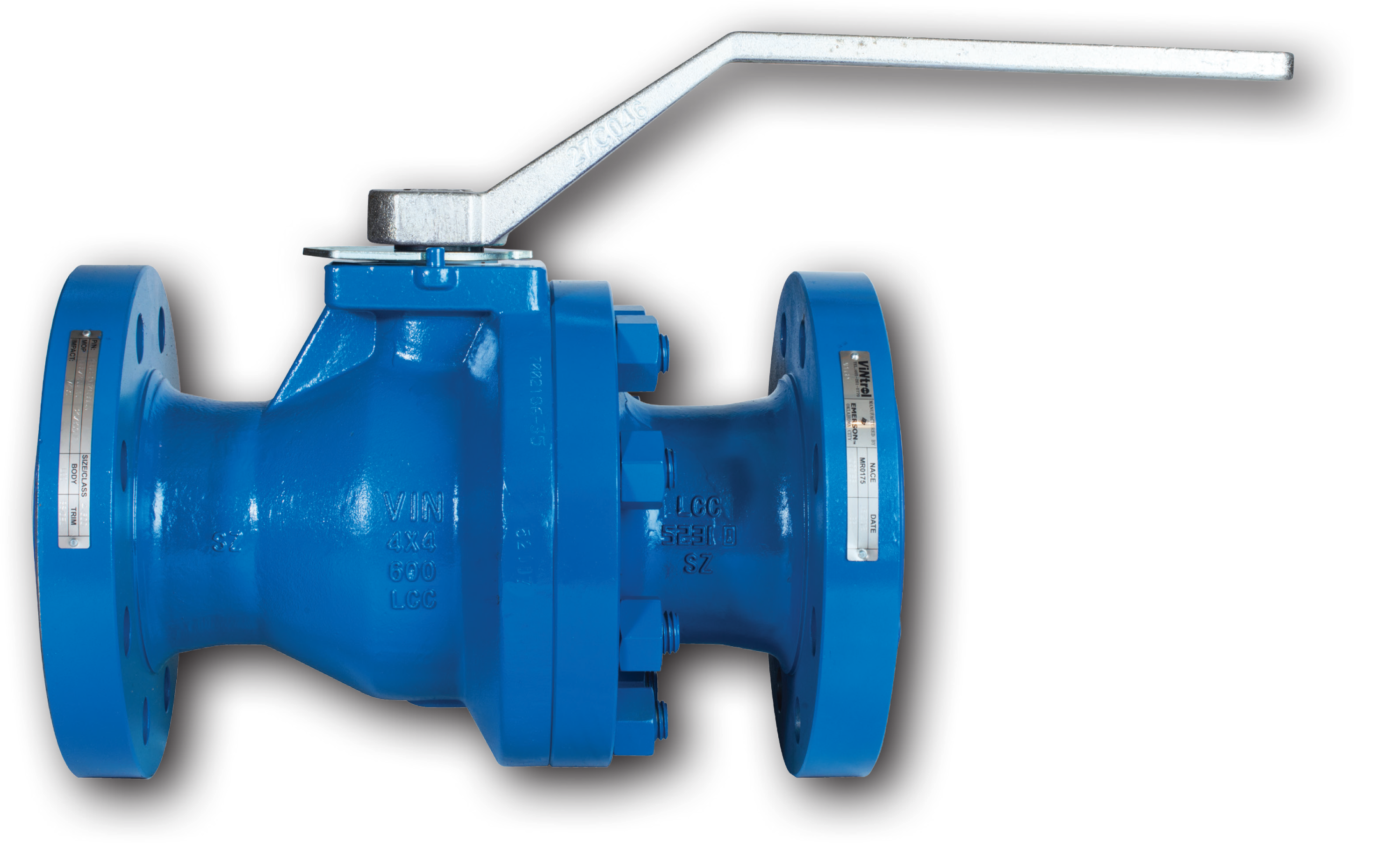

Series DF
ViNtrol offers a complete line of two piece flanged floating ball valves. Available in forged steels with a variety of seats, seals and end connections. All are assembled to standard Fire Safe design and NACE certified. Optional gear operators, pneumatic, hydraulic or electric actuation to ideally suit your application requirements.
Designed, Engineered, Assembled & Tested in the USA
Size Range:
½’” Through 8”ANSI Pressure Class 150 Through 1500*
Reduced & Full Ports available
Temperature rating: Up to 500° F/260° C
Standard Features:*
- Anti-static Design
- Ball has pressure equalization hole to prevent trapped pressure in the body cavity
- Blowout proof back seated stem
- Fire safe per API 607 / API 6FA
- NACE MR0175 (All Parts)
- Stainless Steel Trim for corrosion protection
- Standard locking handle
- ISO 5211 mounting pad which simplifies actuator or gear operator mounting
- Self-relieving seat design
- Triple stem seal: multiple seals for added reliability
- Freeze resistant design available
*Consult Factory
