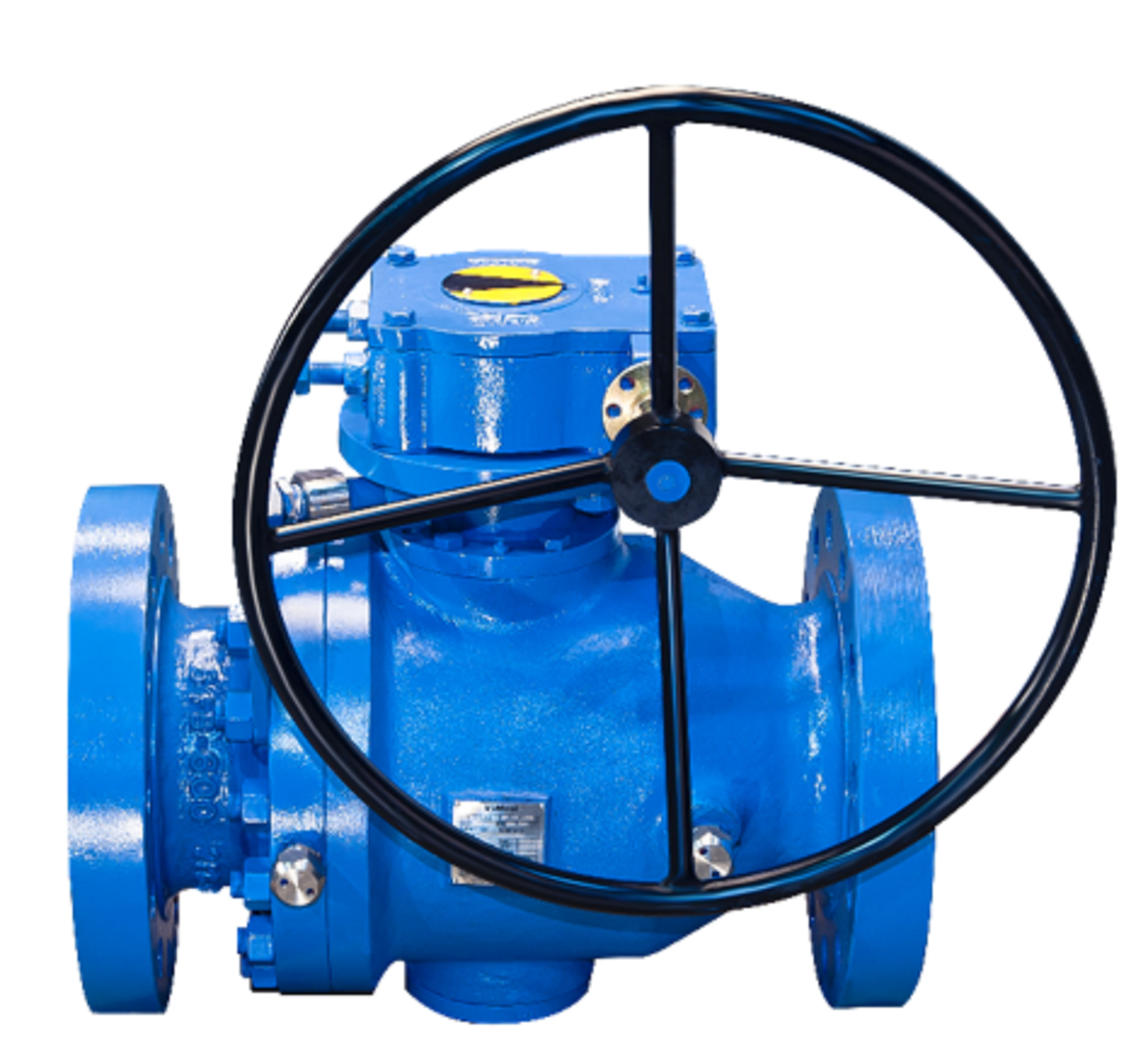

Series VT2
ViNtrol offers a complete line of two piece cast trunnion mounted ball valves. More than 20 Standard Design features, available with a variety of Metals, Seats, and Seals. RF, RTJ & Buttweld end connections. Standard Fire Safe and NACE certified. Actuation options fitted with gear operators, pneumatic, hydraulic or electric actuation. Proven design for your application requirements.
Size Range:
2” Through 12”ANSI Pressure Class 150 Through 600*
Full Ports
Temperature Range: -50° to +250° F
Standard Features:*
- 2-Piece Cast (LCC Body & Adapter)
- Anti-static construction
- API 6D Monogram
- API 6FA Fire Test Certified
- API 607 Fire Test Certified
- ASME B16.34
- ASME Sec VIII Div.1
- Bi-directional Sealing Capacity
- Blowout Proof Stem
- CRN 0C07712
- Double Block and Bleed
- Internal Travel Stops
- ISO 5211 Top Works
- MSS-SP-25 (Marking/Tagging)
- MSS-SP-44 (Flanges)
- MSS-SP-6 (Flange Finish)
- NACE MR0175*
- Seat Injection Fittings with buried check valve
- Self-Relieving Seat Design
- IP67 Gearbox Certified
